Advanced Climate Control for Modern Spaces
Dunham-Bush VRF systems deliver superior energy efficiency, precise temperature control, and quiet operation, making them ideal for diverse applications from commercial complexes to premium residential spaces. With eco-friendly refrigerants and intelligent inverter technology, our VRF product range is designed to maximize comfort while reducing operational costs and environmental impact.
VRF Product Series
Dunham-Bush VRF solutions are available in three advanced series: ACE (Side Discharge), MAXES (Top Discharge), and SMART Heat Pump (Mini VRF), complemented by versatile Indoor Units designed for different building layouts and cooling needs.

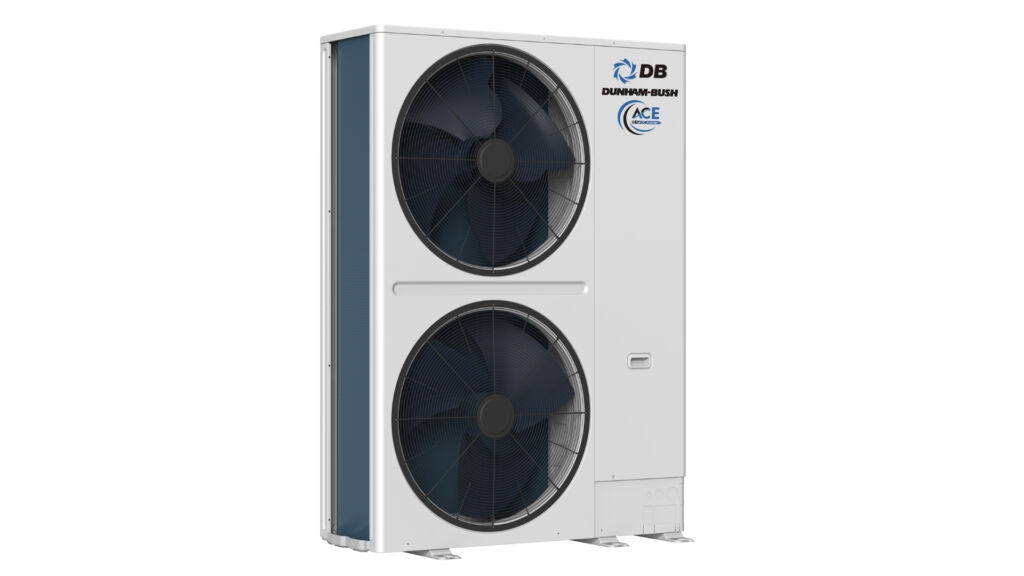

ACE Side Discharge Series
Compact yet powerful, the ACE Side Discharge VRF series offers high energy efficiency and flexible installation, making it ideal for small to mid-sized buildings with limited space.
DBV-ACE — Full DC Inverter Side Discharge VRF
Capacity Range: 8 – 24 HP (25 to 67 kW)
Key Features:
- High Efficiency Inverter Scroll Compressor
- Wide Operation Range for varied climates
- High External Static Pressure for flexible installations
- Long Piping Capability for large building layouts
- Uses eco-friendly refrigerants for sustainable performance
Indoor Units
Indoor units are compatible with both ACE and MAXES VRF outdoor systems, offering flexible design options to suit diverse interiors and applications.
DB Hi Wall Unit
Cooling Capacity: 12K – 36K Btu/h
Key Features:
- Designed for T1 / T3 temperature conditions
- Quiet operation with enclosed design
- High airflow for uniform cooling
- Easy installation with self-cleaning & self-diagnosis functions
- Green refrigerants
Ceiling Cassette Unit
Cooling Capacity: 18K – 60K Btu/h
Key Features:
- T1 / T3 condition compatibility
- Fresh air intake with multiple control options (wired/Wi-Fi)
- Auto-restart and constant airflow function
- Green refrigerants

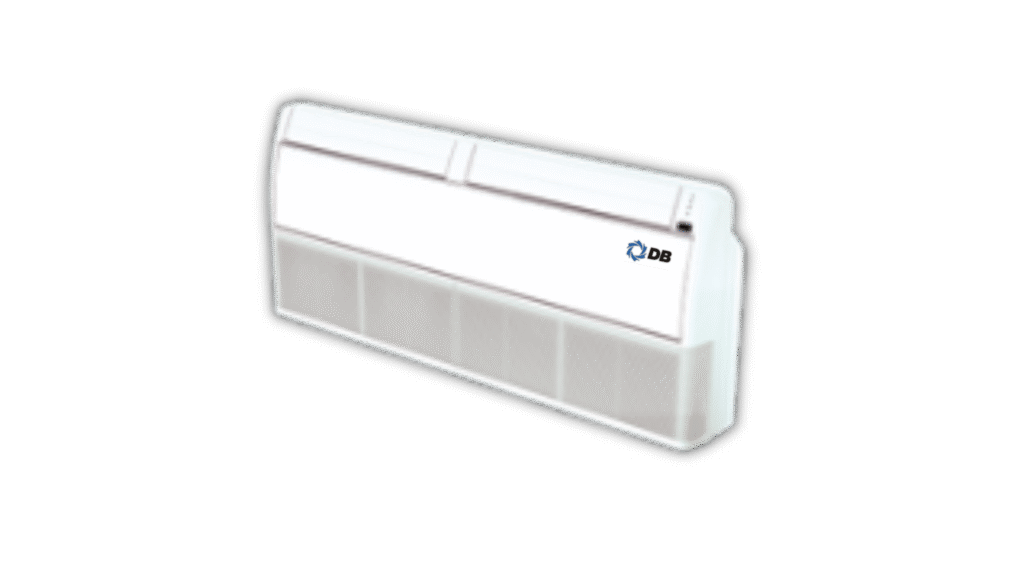

Floor & Ceiling Unit
Cooling Capacity: 18K – 60K Btu/h
Key Features:
- Fast cooling/heating with 3D air swing
- Slim, flexible installation design
- Wi-Fi control option with auto-restart
- Green refrigerants
Ducted Unit
Cooling Capacity: 18K – 60K Btu/h
Key Features:
- T1 / T3 condition compatibility
- Constant airflow and fast cooling/heating performance
- Flexible air intake and built-in water pump option
- Wired/Wi-Fi control with auto-restart
- Green refrigerants

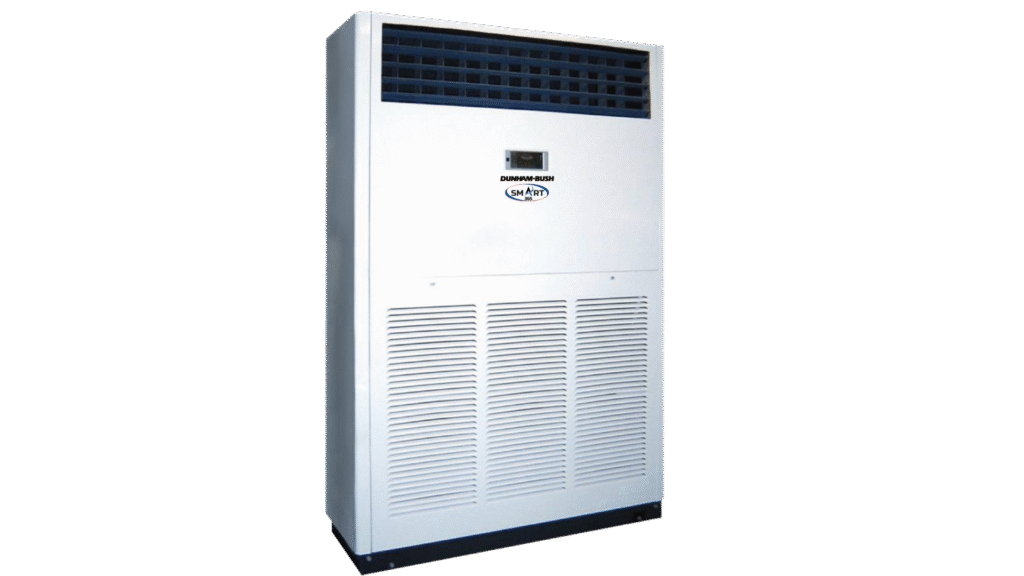

Super Floor Standing Unit
Cooling Capacity: Up to 30 kW
Key Features:
- T1 / T3 condition compatibility
- Wireless control with strong, long-distance air supply
- Auto-restart and self-diagnosis with protection features
- Green refrigerants

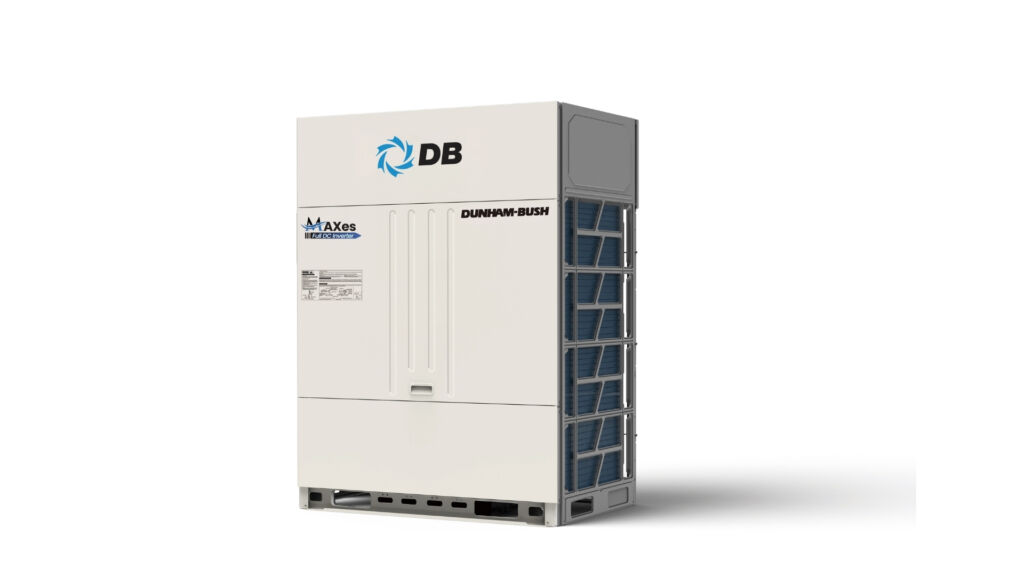

MAXES — Top Discharge Series
Engineered for large-scale applications, the MAXES Top Discharge VRF series combines high-capacity performance with low noise and superior temperature control.
DBV-MAXES — Full DC Inverter Top Discharge VRF
Capacity Range: 8 – 114 HP (25 to 318 kW)
Key Features:
- High Efficiency Inverter Scroll Compressor
- IP55 Fully Enclosed Shieldbox for enhanced reliability
- Low noise with high-efficiency fan design
- Precision temperature control with advanced heat exchangers
- Uses eco-friendly refrigerants
SMART Heat Pump — Mini VRF
Designed for smaller spaces, the SMART Mini VRF provides quiet, efficient heating and cooling with easy installation and versatile indoor unit compatibility.
DB-SMART — Mini VRF System
Capacity Range: 1.2 – 6.3 HP (3.5 to 17.5 kW)
Key Features:
- High Efficiency DC Inverter Compressor
- Compact and quiet with DC fan motor
- Multiple protection functions for high reliability
- Easy installation and enhanced user comfort
- Green refrigerants
Why Choose Dunham-Bush VRF Solutions?
- Flexible system design to suit multiple building types
- Energy-efficient performance for reduced operating costs
- Wide operating range suitable for Indian climatic conditions
- Comprehensive indoor unit options for design versatility
- Sustainable solutions with eco-friendly refrigerants
Get in Touch
Looking for an advanced VRF system for your project?
Speak with our specialists to find the right solution for your building needs.
